T-BAT

T-BAT

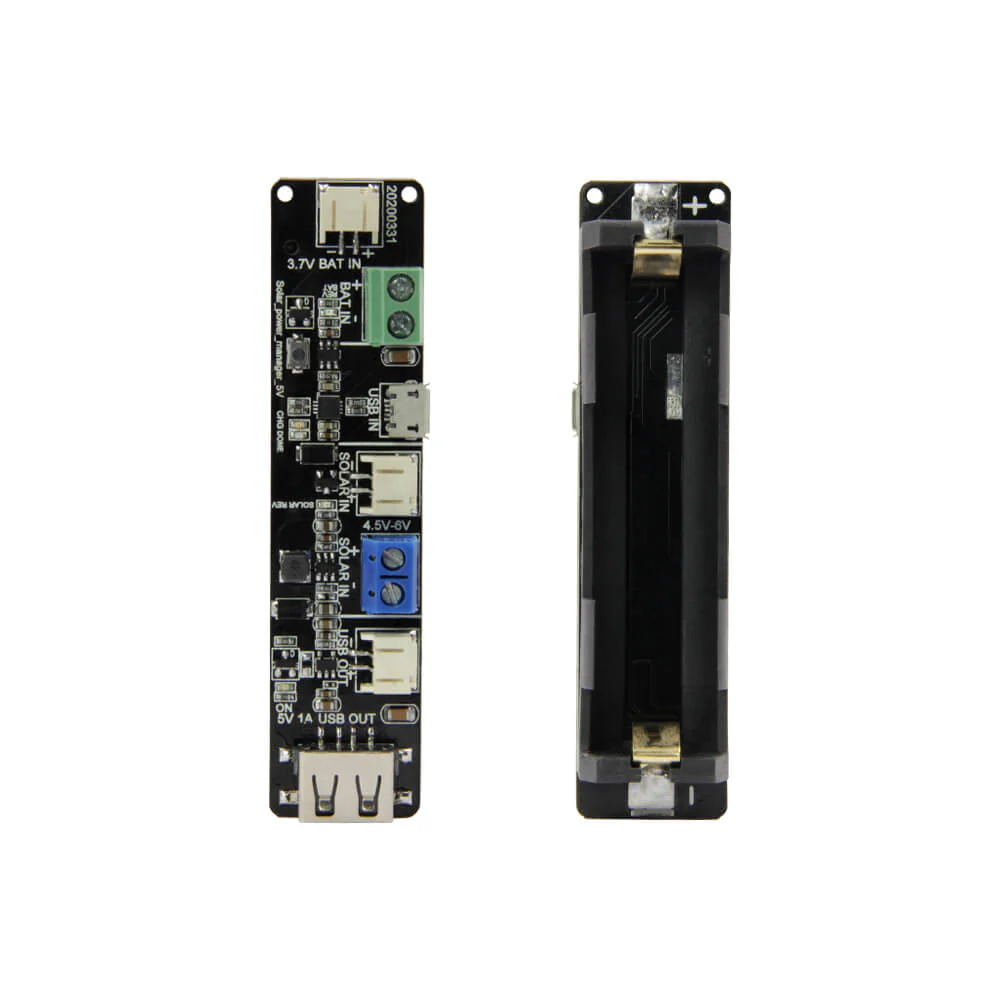

T-BAT is a module that can use the power supply of the solar panel, and can charge the required equipment through T-BAT.

Note

It is recommended not to use this product to charge mobile phones, it is only suitable for devices with a current within 1A (for details, please refer to the actual situation)

Specifications

Chipset

CN3065 Power Management Chip

Button

Power Manger 5V

External Device

3.7V BAT Input Interface(2Pin 2.0MM)

Blue BAT IN Input Interface

USB INĀ  Input Interface(Micro USB)

SolarĀ  IN Input Interface(2Pin 2.0MM)

Blue SolarĀ  IN Input Interface(5.3V+)

USBĀ  Output Interface(2Pin 2.0MM)

5V/1A USB OutputĀ  Interface(USB female connector)

BatteryĀ  Holder

18650Ā  /Ā  3.7V Rechargeable Lithium Battery

Connect to USB to charge

CHG DONE position lights up red and green

ON position lights up green

T-BAT

1 X T-BAT

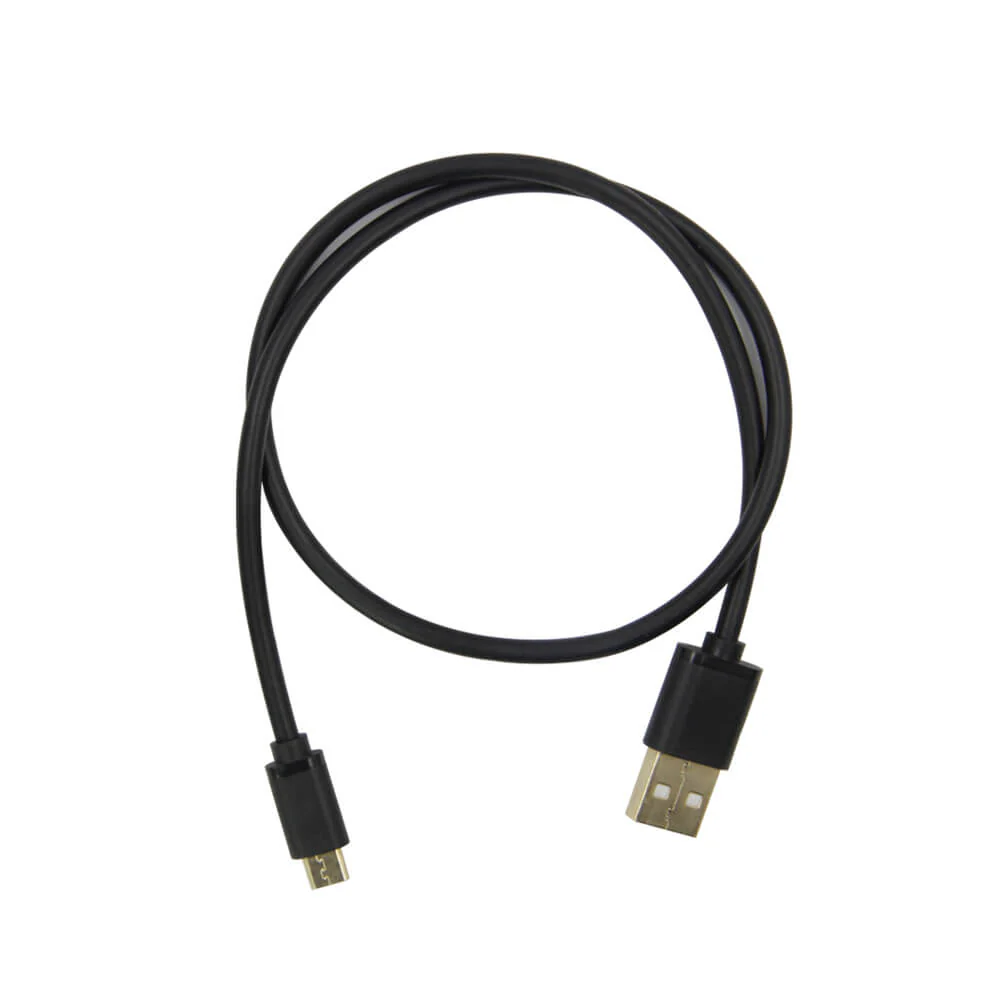

Micro USB Cable

1 XĀ Micro USB Cable (30CM)

Select Style
From $0.15

Original: $0.50

-70%
T-BATā€”

$0.50

$0.15

Product Information

Shipping & Returns

Description

T-BAT is a module that can use the power supply of the solar panel, and can charge the required equipment through T-BAT.

Note

It is recommended not to use this product to charge mobile phones, it is only suitable for devices with a current within 1A (for details, please refer to the actual situation)

Specifications

Chipset

CN3065 Power Management Chip

Button

Power Manger 5V

External Device

3.7V BAT Input Interface(2Pin 2.0MM)

Blue BAT IN Input Interface

USB INĀ  Input Interface(Micro USB)

SolarĀ  IN Input Interface(2Pin 2.0MM)

Blue SolarĀ  IN Input Interface(5.3V+)

USBĀ  Output Interface(2Pin 2.0MM)

5V/1A USB OutputĀ  Interface(USB female connector)

BatteryĀ  Holder

18650Ā  /Ā  3.7V Rechargeable Lithium Battery

Connect to USB to charge

CHG DONE position lights up red and green

ON position lights up green

T-BAT

1 X T-BAT

Micro USB Cable

1 XĀ Micro USB Cable (30CM)
