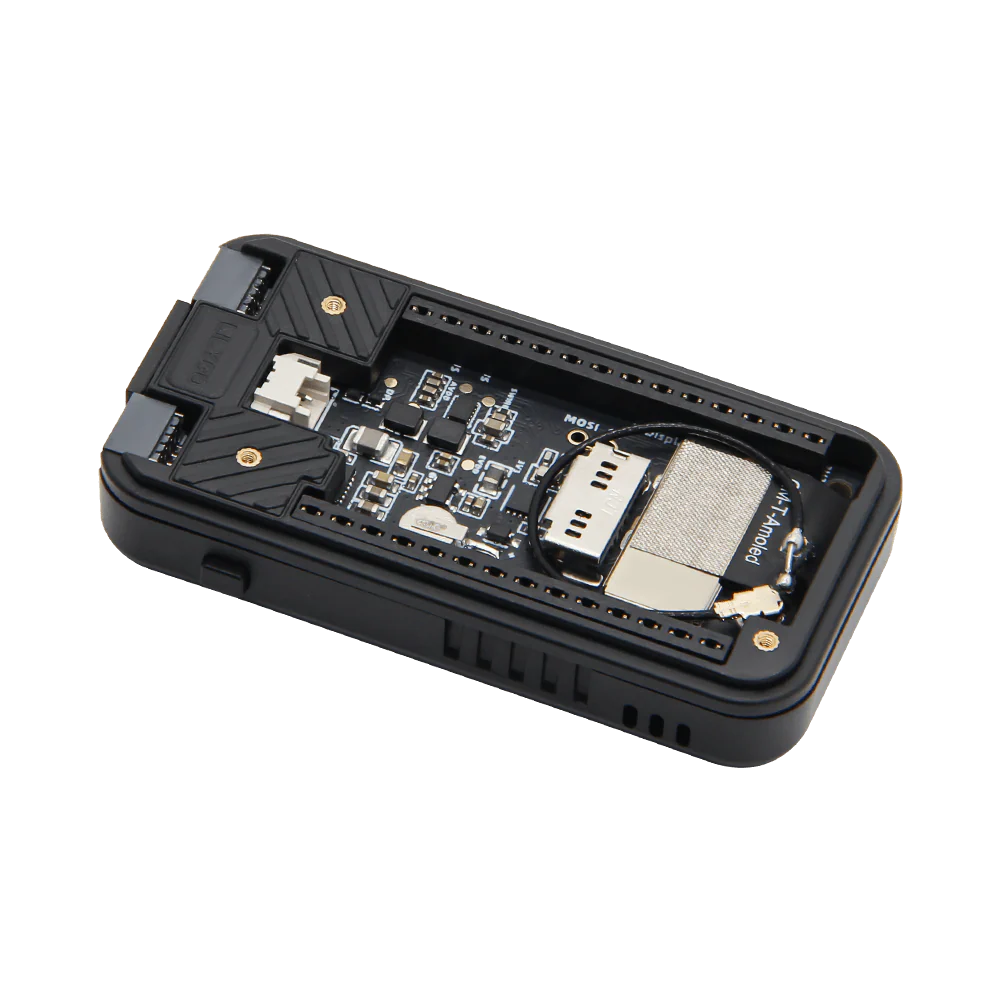

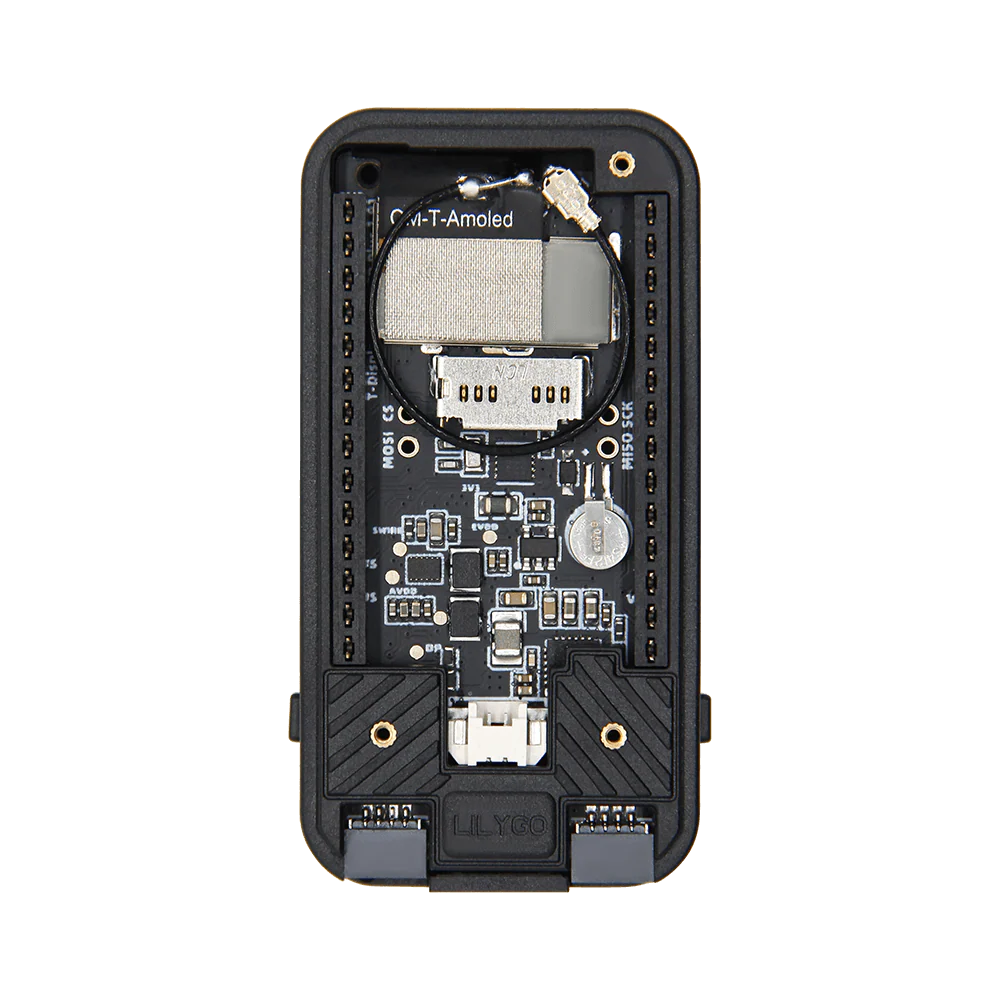

T-Display S3 AMOLED Plus

T-Display S3 AMOLED Plus

New version upgrade!Ā

  • TF cardĀ holder
  • RTC
  • PMUĀ
  • Compatible expansion interfaceĀ
  • Metal shielding cover
  • External FPC antenna

Specifications

MCU ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth5 (LE)
Development Arduino, PlatformIO-IDE, Micropython
Flash 16MB
PSRAM 8MB
Support Capacitive Touch
Onboard functions RTC+PMU+SD Card+Battery holder

1.91 inch RM67162 IPS AMOLED

Resolution 240(W) X RGB X 536(H)
Interface SPI
Active Area 19.8*44.2mm
Driver IC RM67162
Viewing Angle IPS Full View Angle

Tech Support

ā„¹ļøProduct information
Check out our GitHub repository for sample code and more detailed information about this board.

šŸ’»Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

What's in the box
