T-Zigbee
The T-ZigbeePA version adds aĀ PA chipĀ to the T-Zigbee version and replaces theĀ antenna with stronger signal.
T-Zigbee is LILYGOĀ®'s second motherboard with dual MCUs. (Notice: Two chips can work at the same time.)
Equipped with TLSR8258 Ultra-Low Power chip (Support BLE 5 Mesh, Zigbee, RF4CE, Thread 6LoWPAN, HomeKit, ANT 2.4GHz Proprietary Standard) and ESP32-C3 chip (Support WIFI and Bluetooth).
Kind Tips
Ā
Specifications
| MCU 1 | TLSR8258 Ultra-low-power MCU supporting ZigBee and BLE5 |
| Wireless | Ā Support BLE 5 Mesh, Zigbee, RF4CE, Thread 6LoWPANćHomeKitć ANT 2.4GHz proprietary standard With PGA, AMIC, DMIC, 6-channel PWM function |
| Programmable LED | Red LED: PD04Ā |
| Green LED | Ā PA00 |
| MCU 2 | ESP32-C3 Equipped with RISC-V processor SoC Support 2.4 GHz Wi-Fi and Bluetooth 5 (LE) Main frequency 160 MHz, built-in 400 KB SRAM, 384 KB ROM |
| Ā Programmable buttons | IO02 |
| LED | IO03 |
Technology Support [Github]
If you need technical support please check the link to find more details.

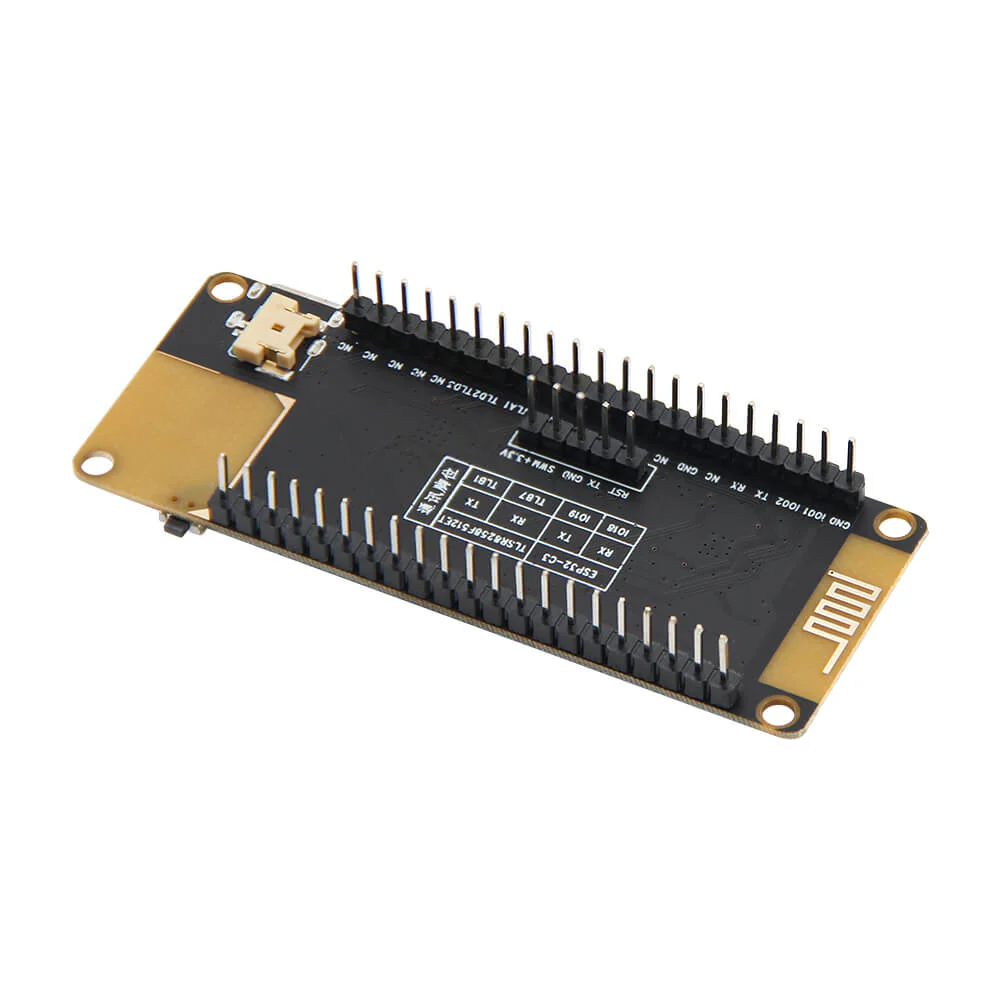

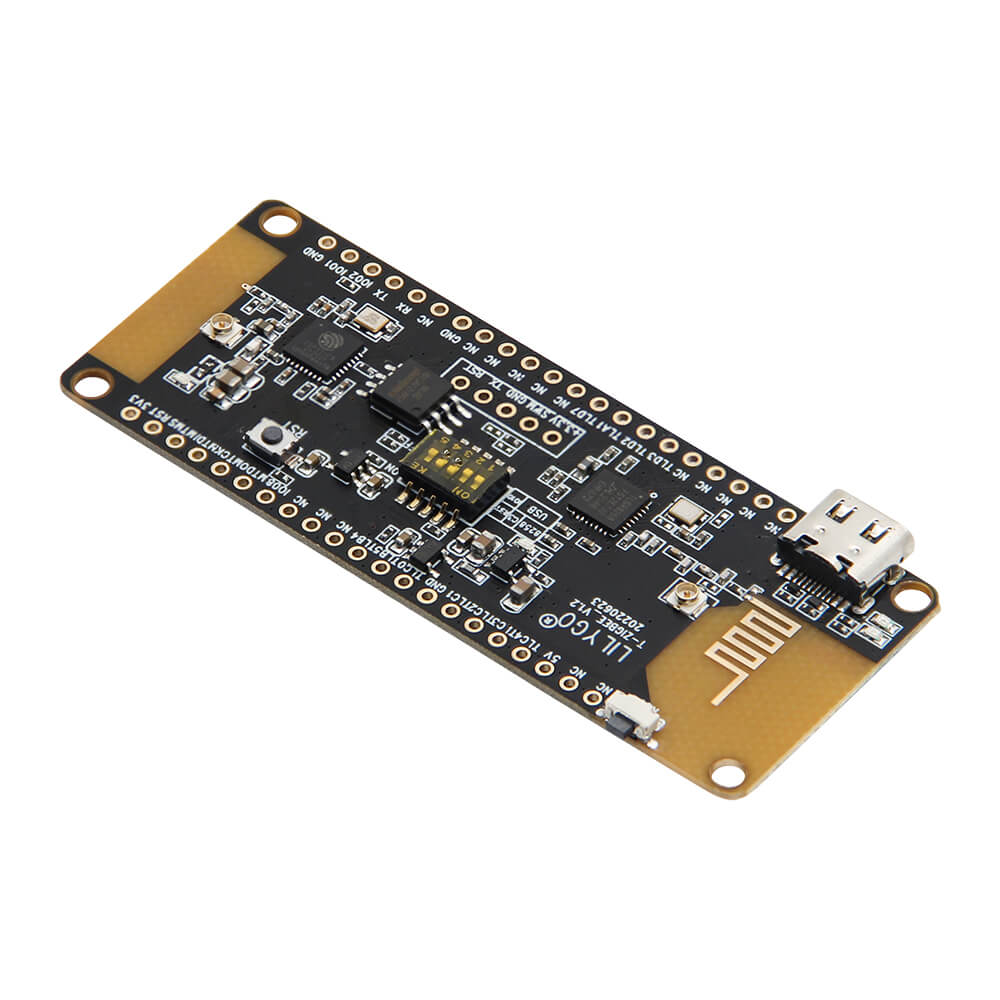

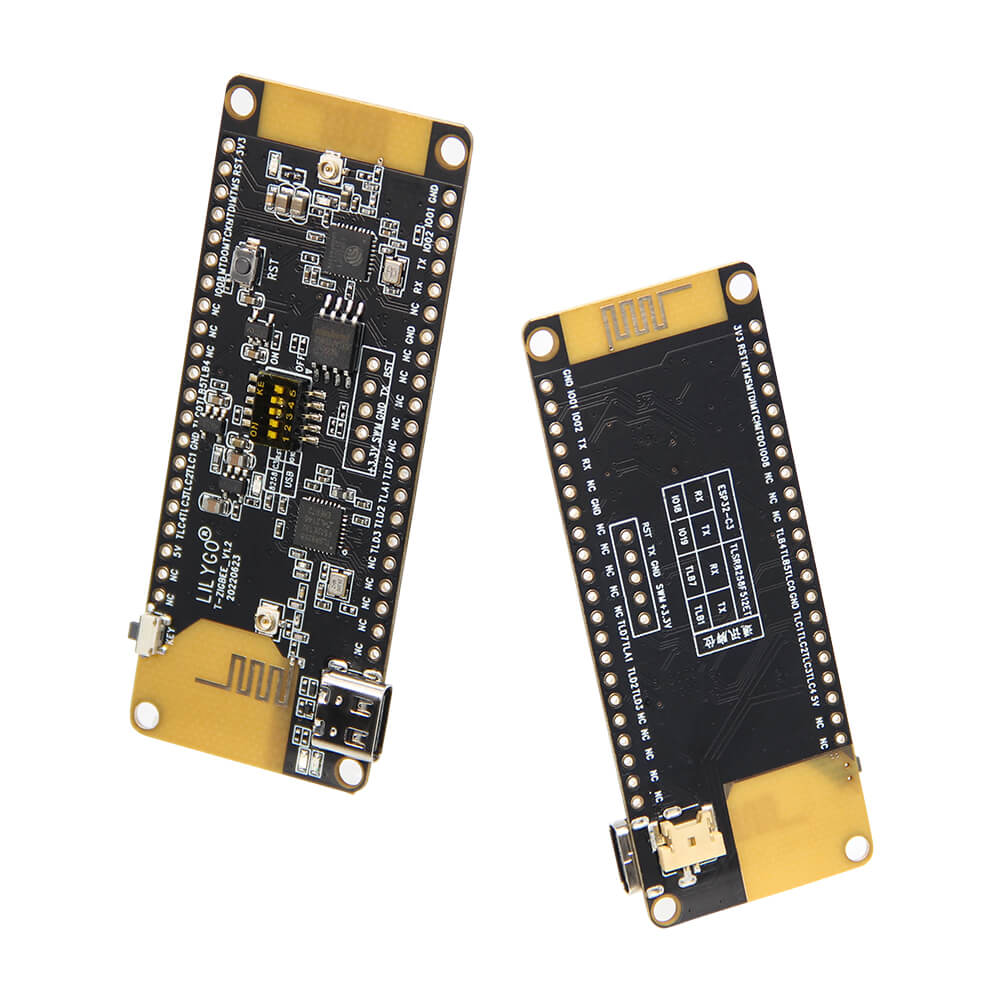

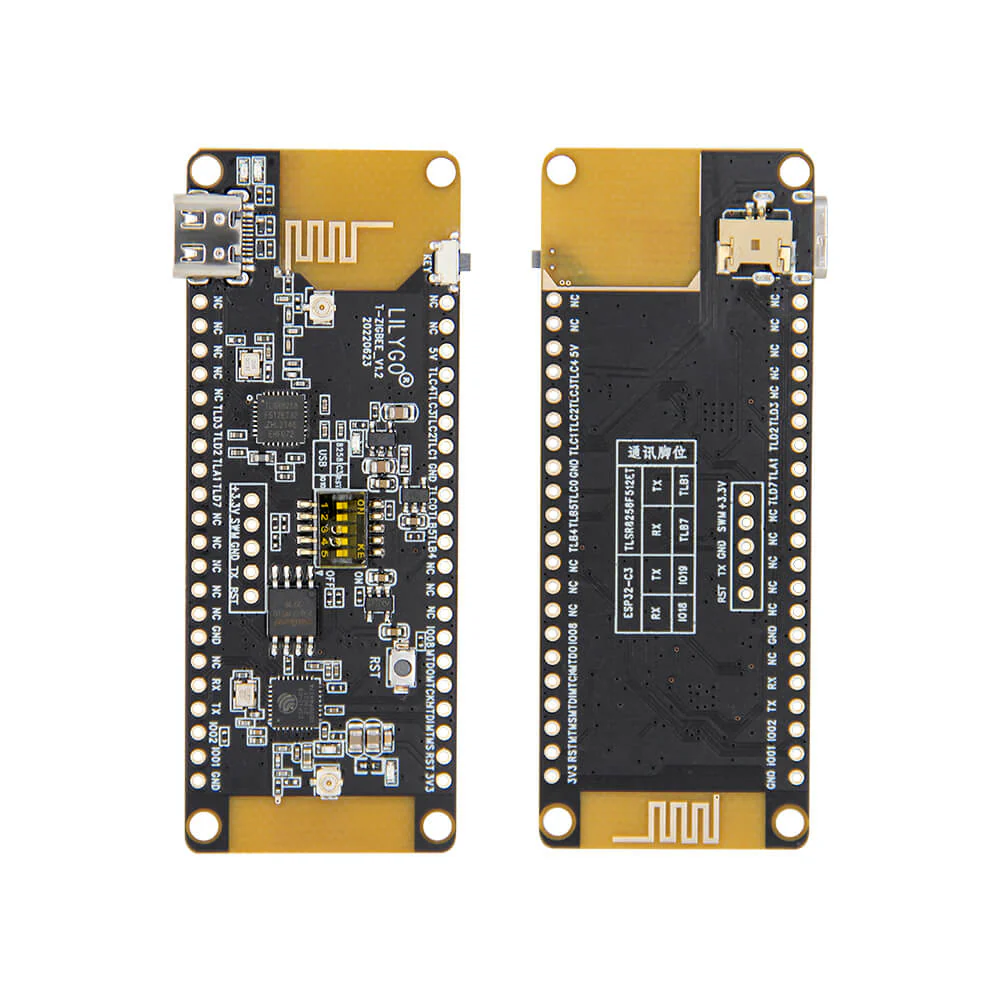

1. Appearance Details
2. Size
3. Pin Diagram
T-Zigbee
T-Zigbee PA
T-Zigbee+T-U2T
Ā
T-Zigbee PA
Ā
