TO ESP8266 OLED SH1106
Specifications
| MicrocontrollerĀ | Ā ESP8266 |
| Clock Speed | 80MHz/160MHz |
| Digital I/O Pins | 8 |
| Button | D6,D8,D7 |
| Analog Input Pins | 1(Max input: 3.2V) |
| Working current | 0~80 mA |
| Operating Voltage | 3.3V |
| OLED |
SH1106 1.3inch SDA-D1, SCL-D2 |
| Battery connectorĀ | Jst 2pin 1.25mm |
| Ā serial port chips | CH9102 |
Technology Support [Github]
If you need technical support please check the link to find more details.
Ā
Pin Diagram
Ā

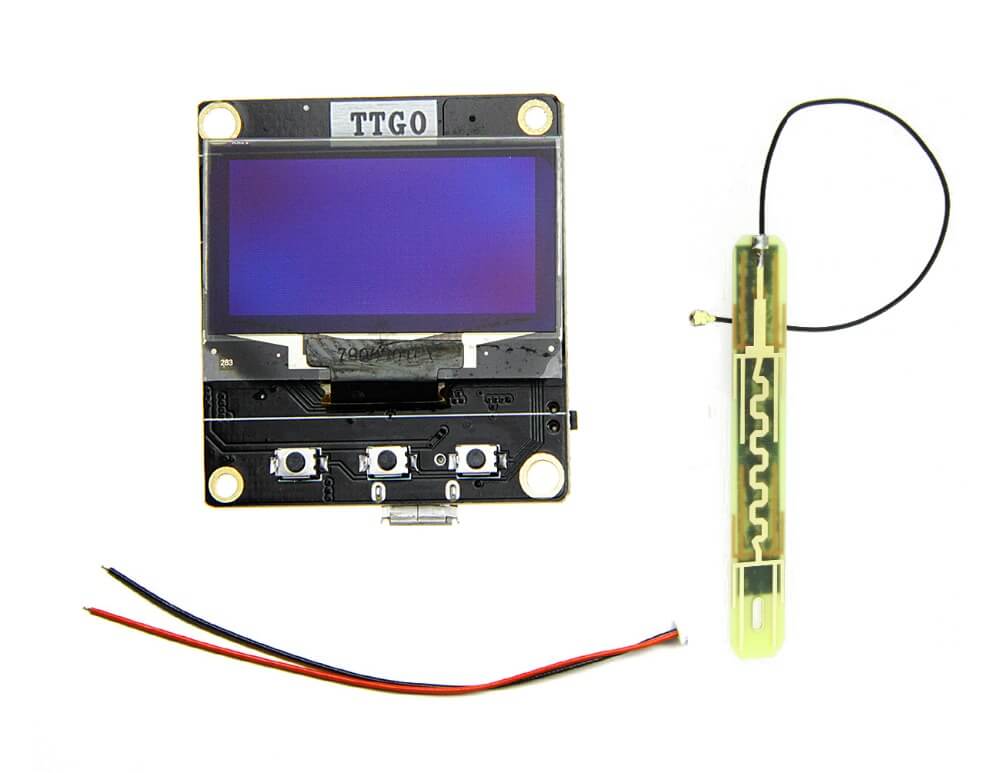

With Antenna
- 1 X TTGO TOĀ (Use onboard antenna by default)
- 1 X Power Cable (Jst 2pin 1.25mm)
- 1 X Antenna
Ā

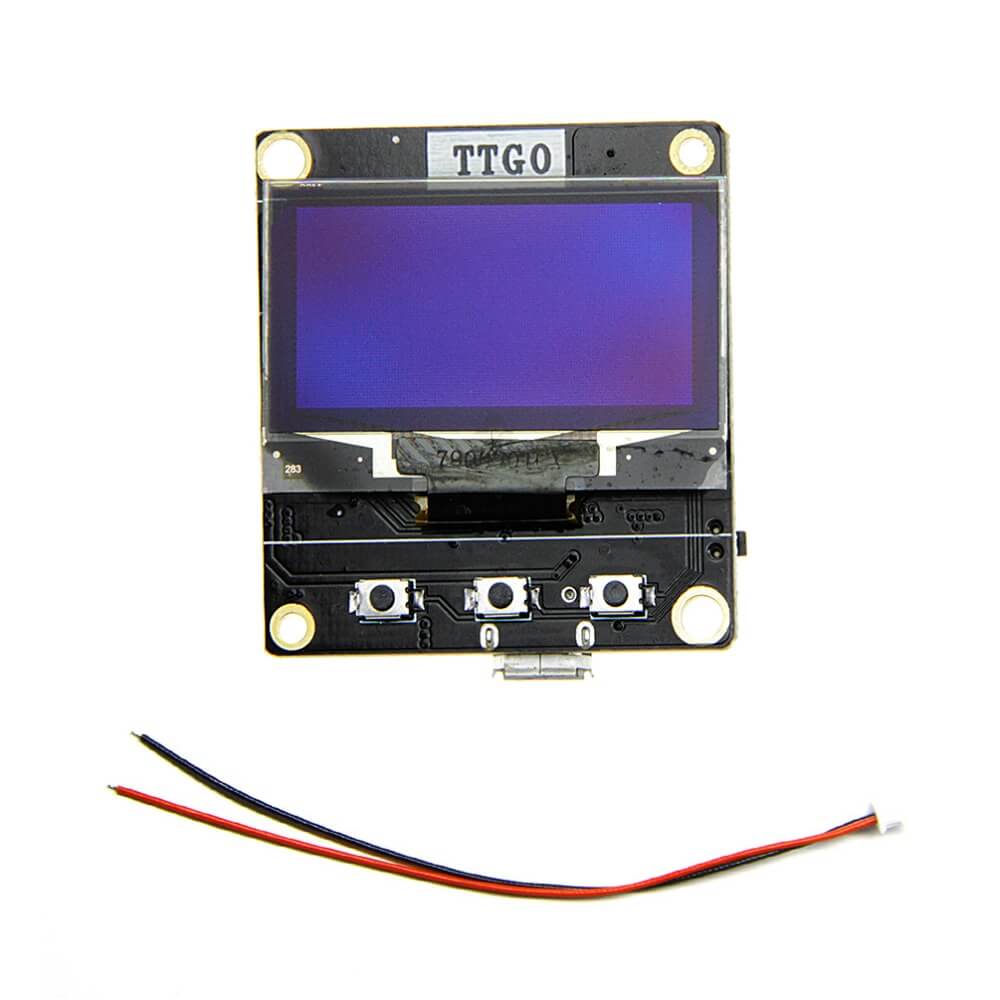

Normal version
- 1 X TTGO TOĀ (Use onboard antenna by default)
- 1 X Power Cable (Jst 2pin 1.25mm)
